Rear Fender

Schematic: F-21 Rear Fender
Affected/related parts: frame


Variation 1: Early Painted Fender Bolts to Frame

• Distinguishing features:

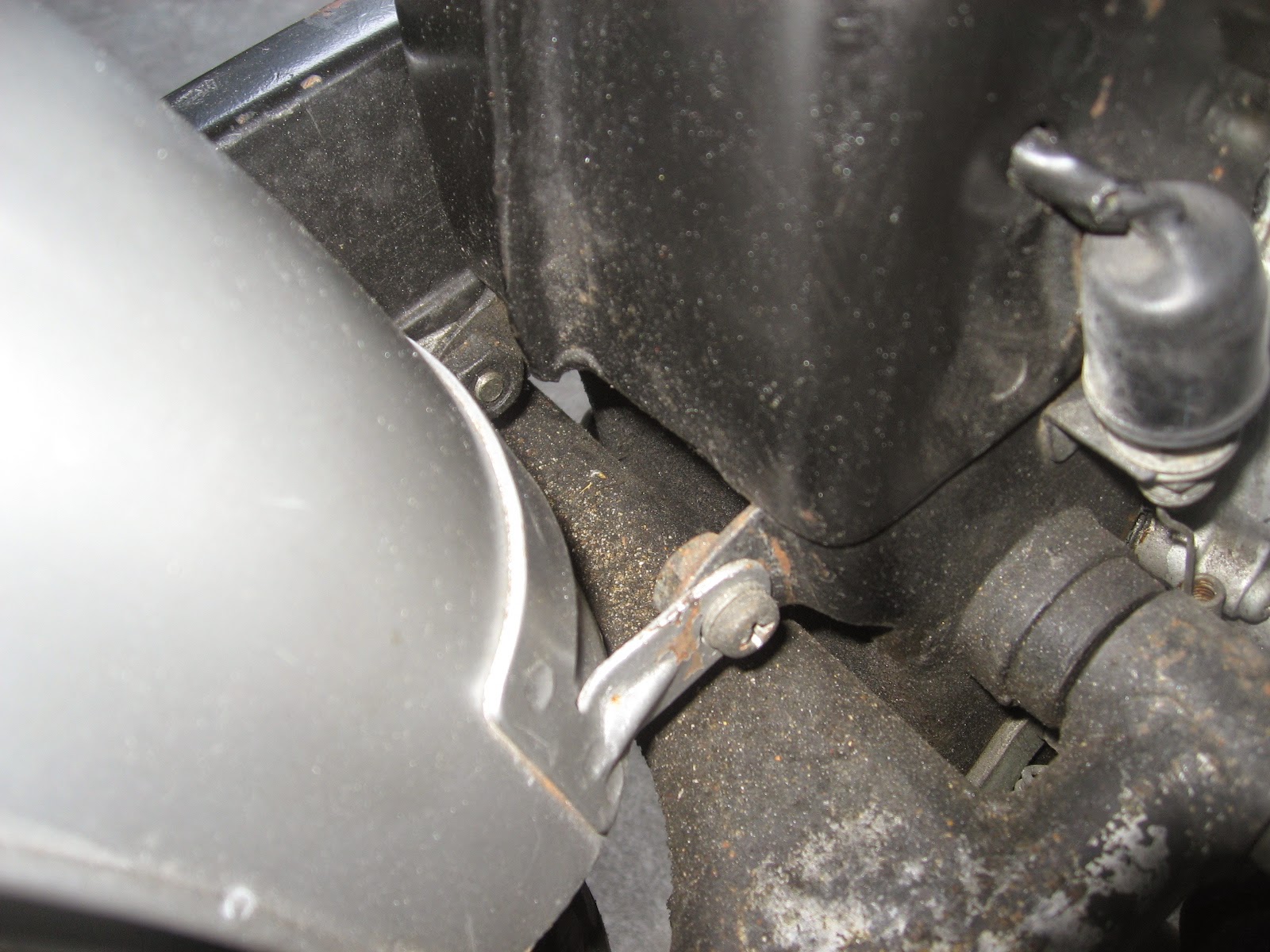

• the forward part of the fender attaches to the frame with 2 bolts
• painted silver finish
• Part number(s):
• 80100-028-010
• Early or Late: Early
• frame number 111,565 to 640,504
• Notes:

Variation 2: Late Chrome Fender Rests on 2 Pins

• Distinguishing features:
• the forward part of the fender just rests against the frame on two rubber cushions
• chrome finish
• Part number(s):
• 80100-028-670XW
• Early or Late: Late
• frame number 640,505 onward
• Related parts:
• Rubber cushions
• Notes:
• Chrome fenders first appeared in March, 1968

Side by Side: Chrome vs Silver Paint
