Fuel Tank

Schematic: F-11 Fuel Tank
Affected/related parts: frame


Variation 1: Early Mounting tab with No Hole

• Distinguishing features:
• Has a rectangular tab where tank attaches to frame
• Part number(s):
• 17500-028-010Z
• Early or Late: Early
• Frame number 111,565 to 142,498 and 424,487 to 446,880
• Notes:
• Matches to the early frames where the attachment point looks like a little bench

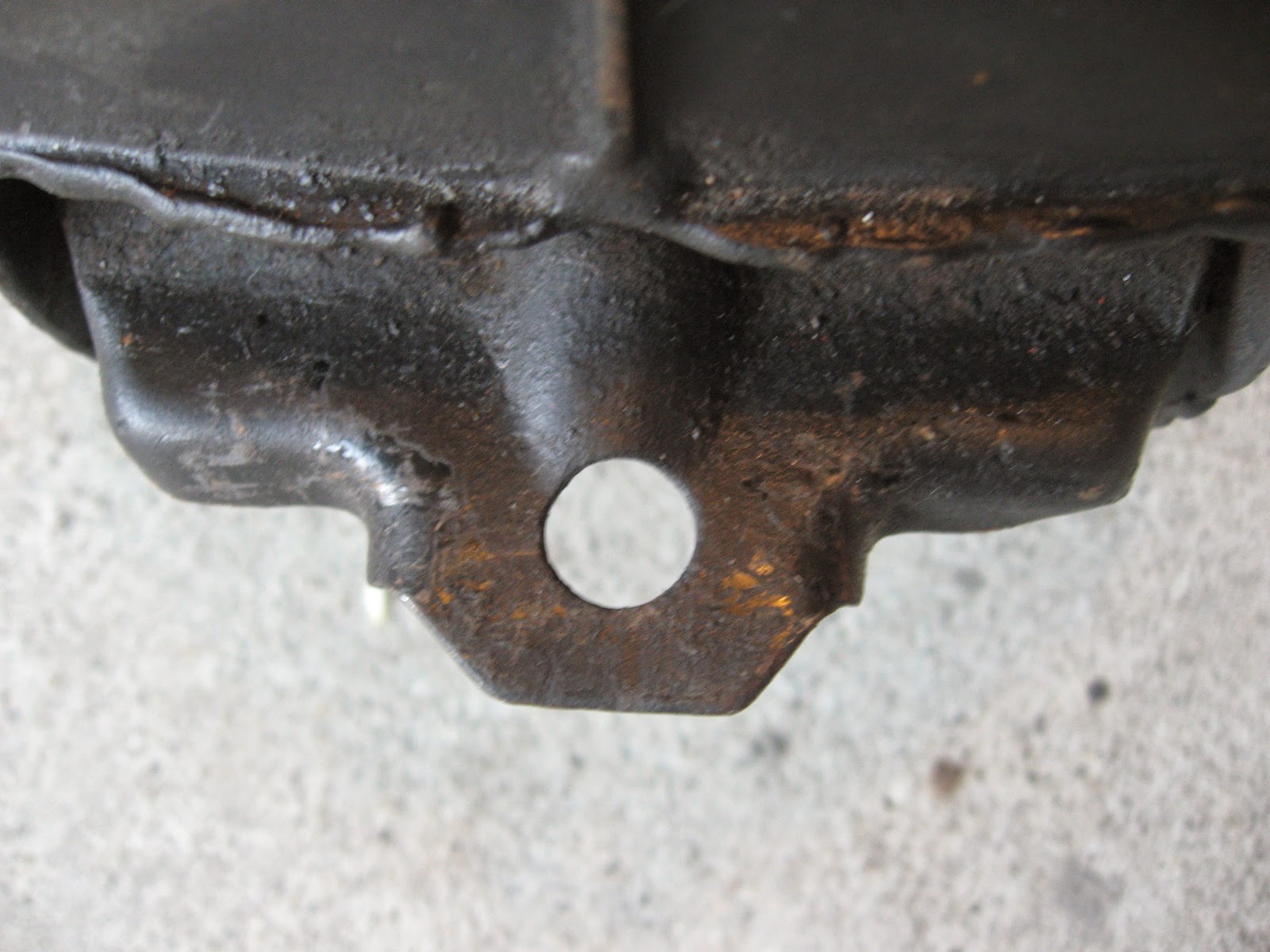

Variation 2: "Middle" style Mounting tab with Bolt Hole

• Distinguishing features:
• Has a mounting tab with a hole in the center
• Notice how the center of the tab is circular
• Part number(s):
• 17500-028-020Z
• Early or Late: Middle
• Frame number 446,881 to 646,983
• Notes:
• A 6x20 bolt is used to secure the tank to the frame, but the hole itself is large enough to fit the rubber cushion.
• Fits to the frame that has the corresponding hole in the mounting tab.

Variation 3: Late style Tab into Rubber Cushion

• Distinguishing features:
• Also has a hole but the center of the tab is squared off
• Part number(s):
• 17500-028-811Z
• Early or Late: Late
• Frame number 646,984 onward
• Notes:
• This tank matches to the frame that has the 4 tabs at the mounting point.
• Note that there is no bolt used to attach it.  The tab simply slips into the slit in the rubber cushion.
